Amiga modifications

Capacitor Replacement (recap)

Amiga 1000 NTSC

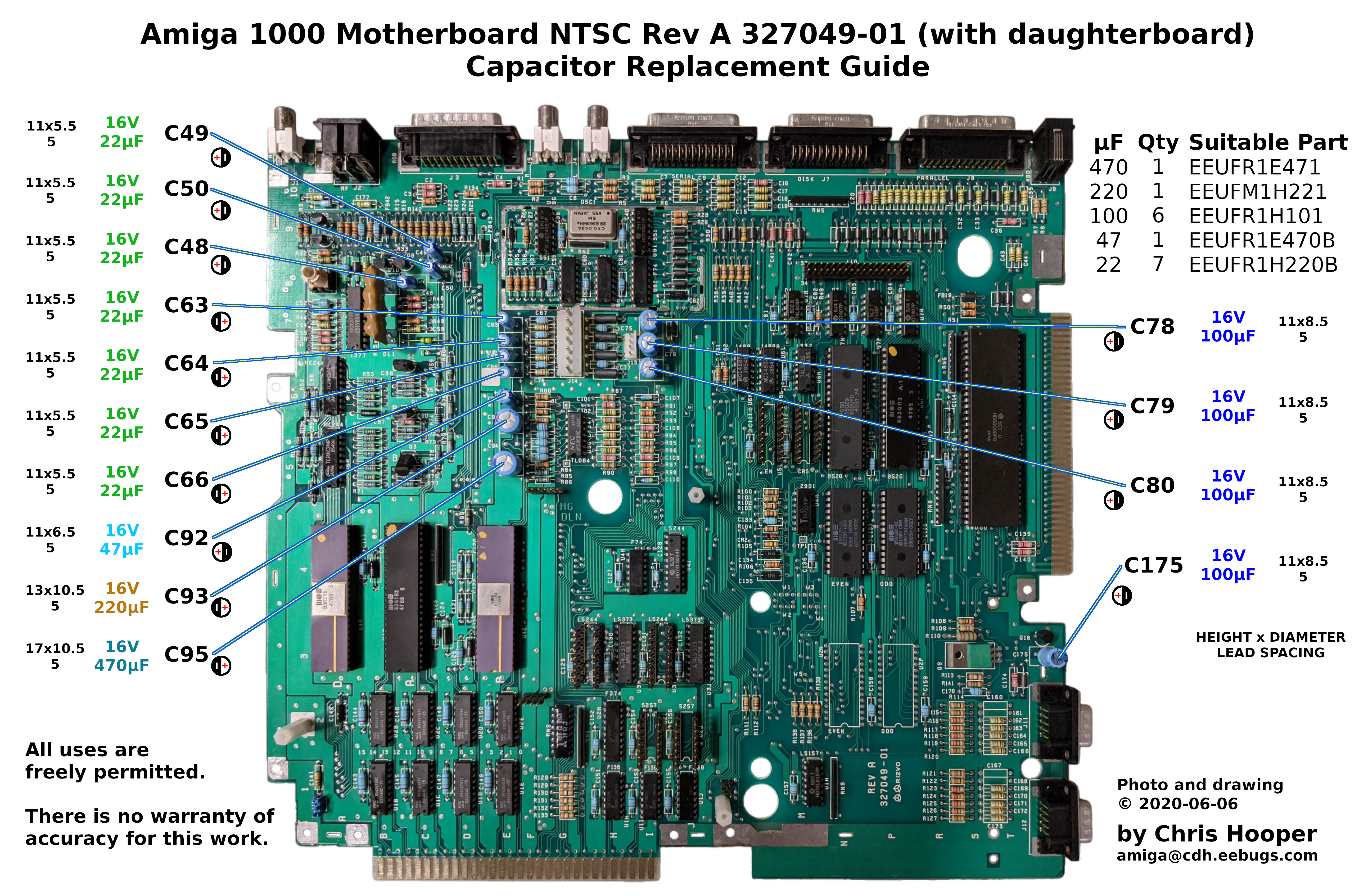

Motherboard Rev A 327049-01 Image or PDF

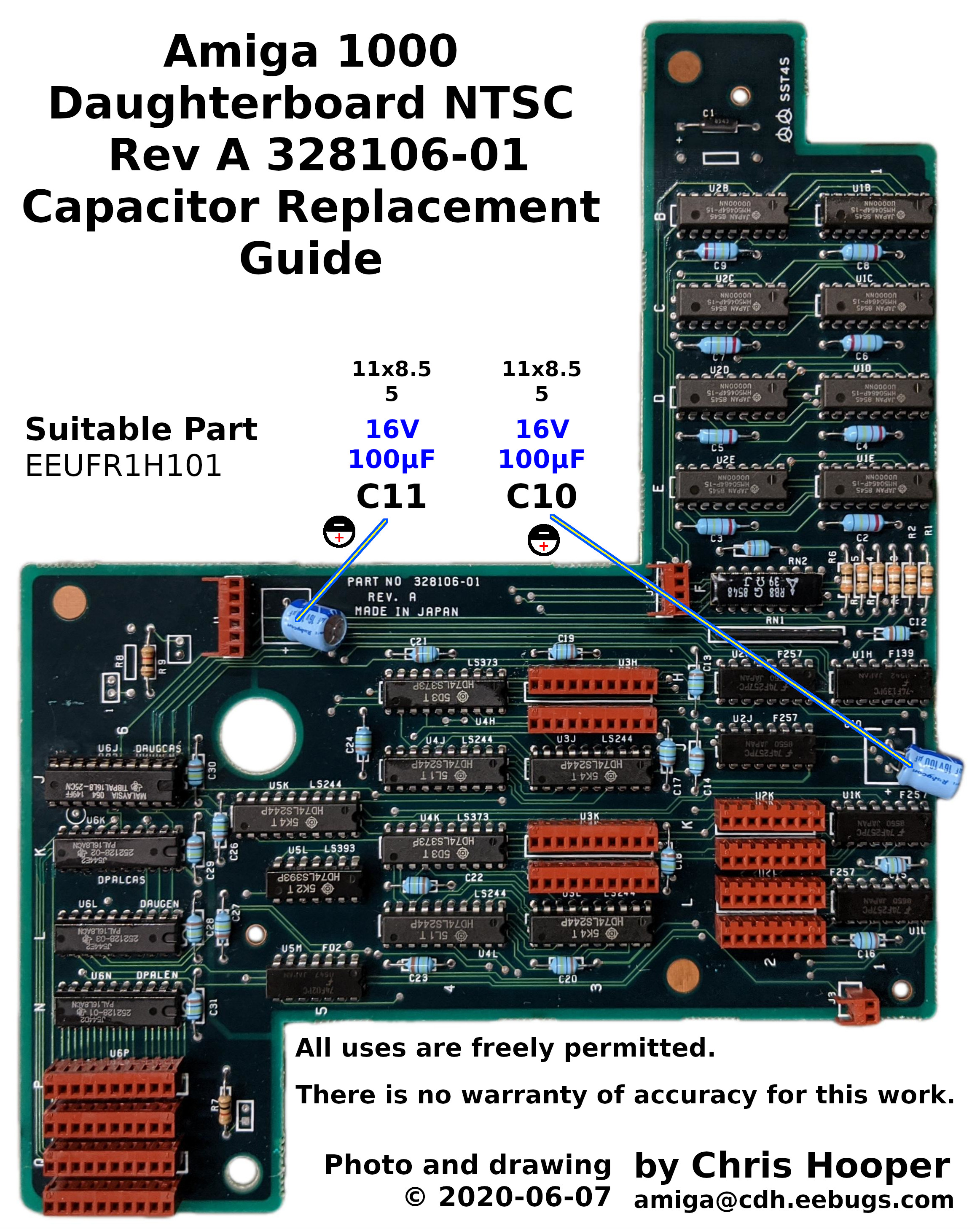

Daughterboard Rev A 328106-01 Image or PDF
Power Supply 110V P-850481 SPS-S94V-0 Image or PDF
Amiga 2000

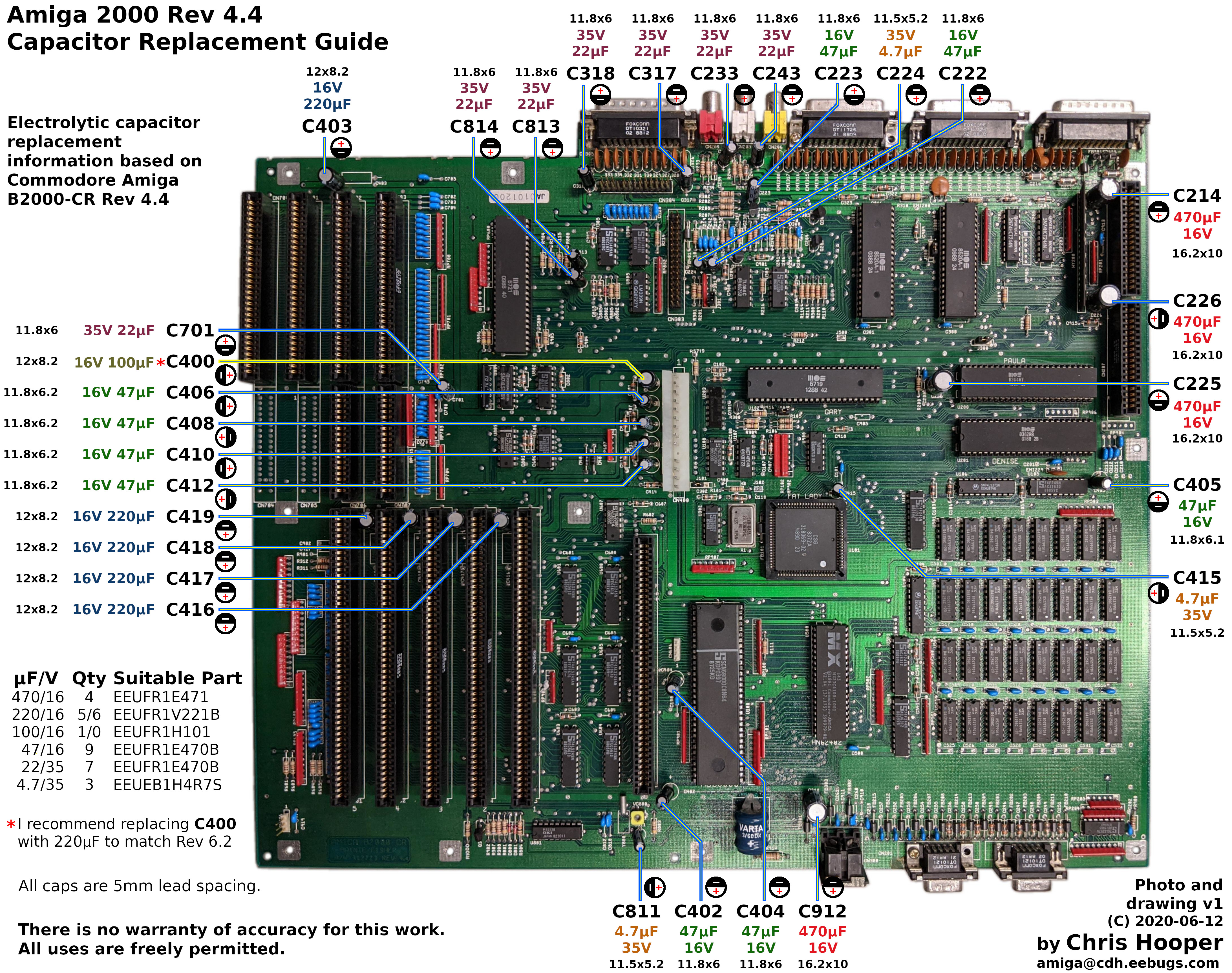

Rev 4.4 NTSC Motherboard Image or PDF

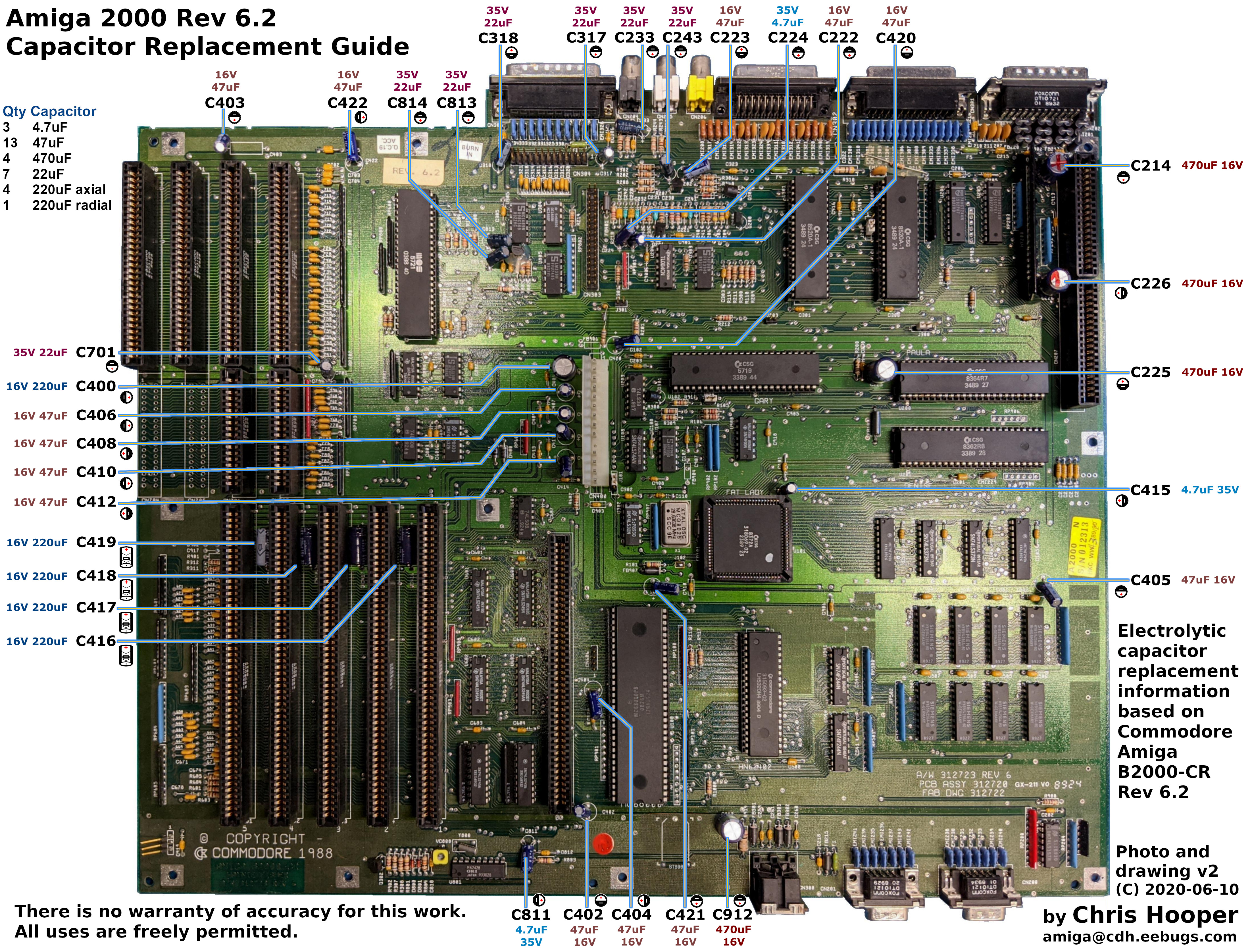

Rev 6.2 NTSC Motherboard Image or PDF

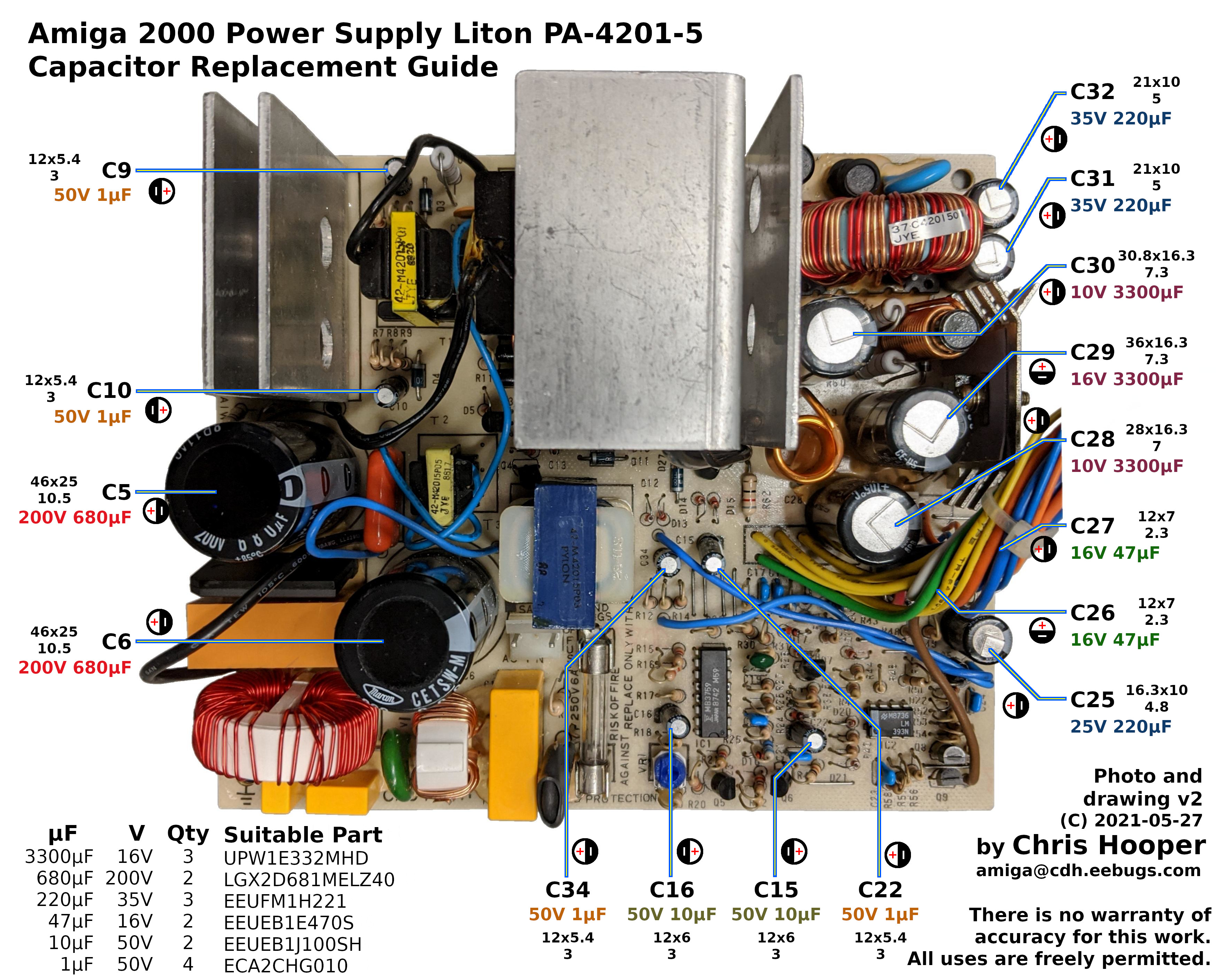

Power Supply 110V Liton PA-4201-5 Image or PDF
Amiga 3000

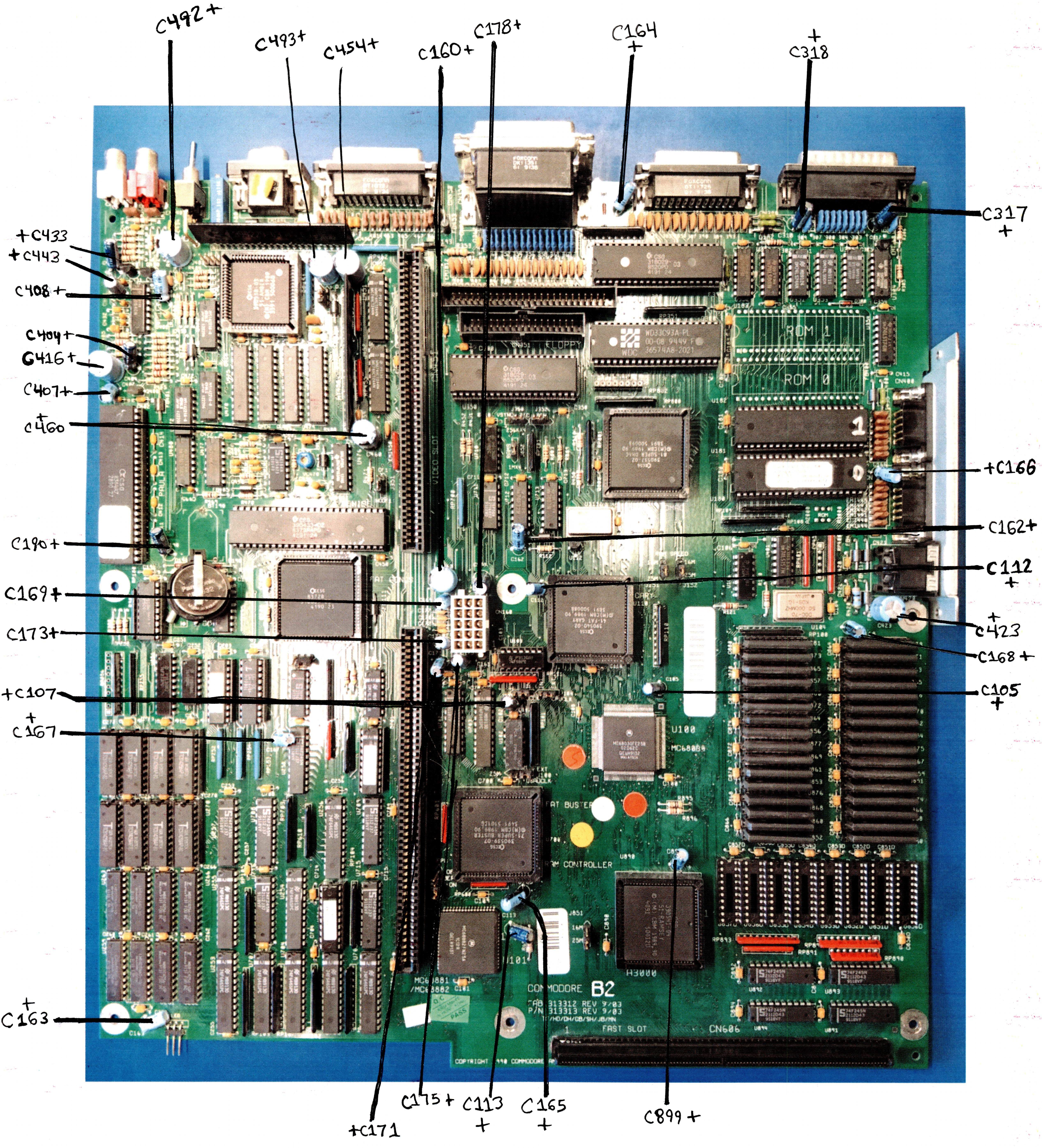

Rev 9 NTSC Motherboard Image or PDF

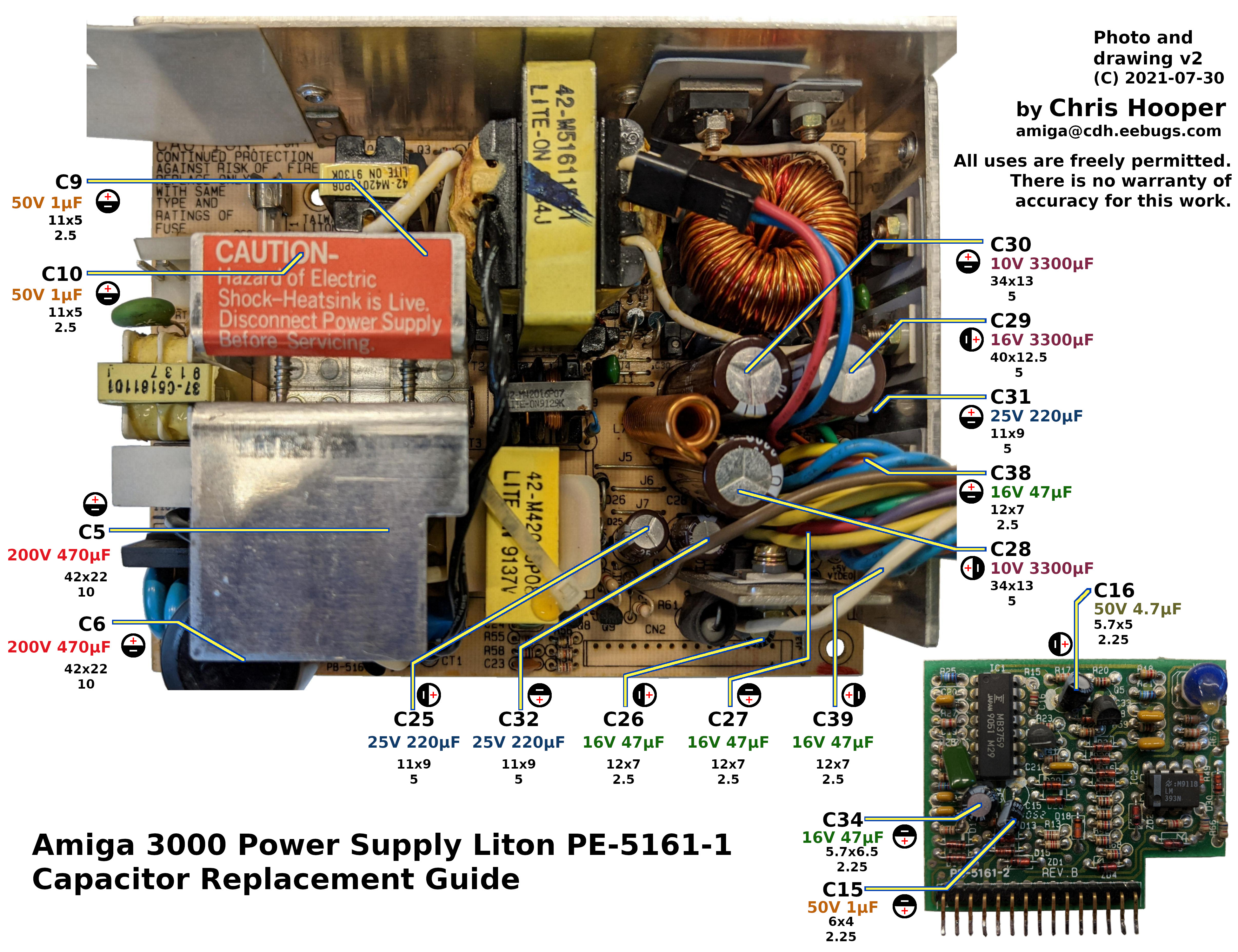

Power Supply 110V Liton PE-5161-1 Image or PDF

Amiga Video

Amiga 2000/3000 video slot to Pi HDMI - board which plugs in the Amiga video slot and allows a Raspberry Pi Zero to present the Amiga display for HDMI monitors. This board is based on c0pperdragon's and LinuxJedi's Amiga Denise versions of the RGBtoHDMI project.
